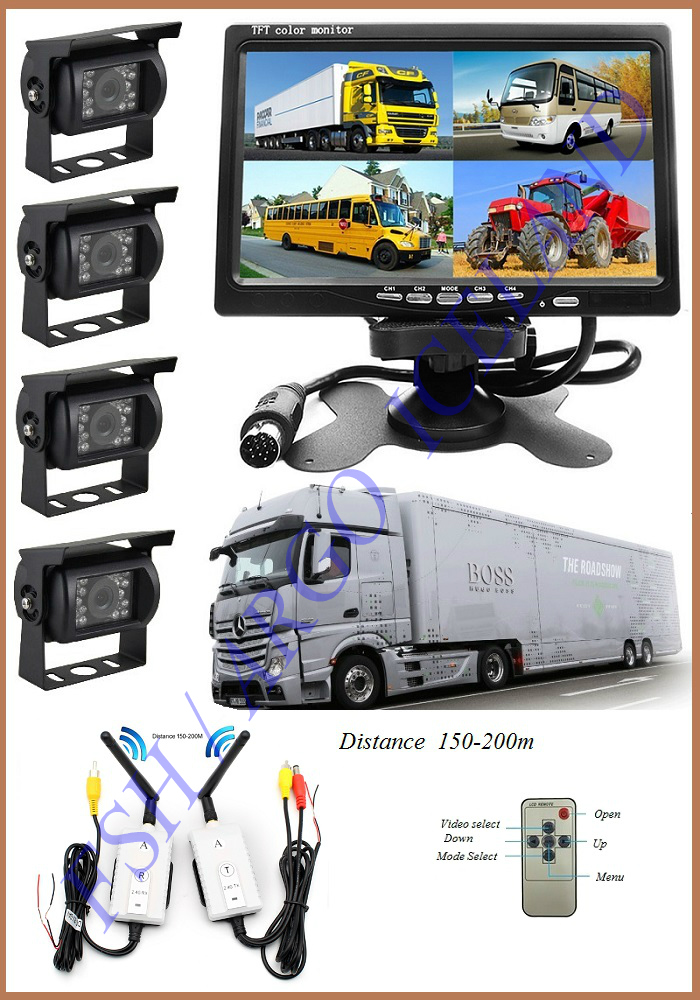

New 7 inch LCD Monitor  12/24V

4 video inputs Quad  Process Split Screen

Support reversing  automatically switch

Support Bus Truck  Motor home and Boat monitor

Quad screen can  simultaneously display  four screens, there are  four sets of back-up  camera input AV  interface

4 split 7-inch Car  monitors

Screen type: 7 inch Quad  split screen

Resolution:  480(W)x240(H)

Aspect Ratio: 16:9

Screen brightness:  300cd/m2

Format: PAL / NTSC / Auto

Signal Input:  V1/V2/V3/V4,

Power Supply: 12~24V

Comsumption : 7.5W

Net Weight:740g

1. Sensor: PC1030D

2. Pixel: 628X582

3. Resolution: 420TV lines

4. Minimum illumination: 1.0LUX

5. Lens: 1.3mm / 0.05 inch

6. Format: NTSC

7. Video output: RCA interfaces, 1.0Vp-p, 75ω

8. Operating temperature: -25 °C to 60 °C

9. Power Source: DC 12V-24V

10. Current: DC12V> = 100mA

11. Lens Angle: 150 degrees

12. Night vision range: 1-5m / 39.37 in-196.85 in

13. Special Features: waterproof mirror \\ Earthquake

14. Waterproof grade: IP66-68
