FSH-XJX45
  • FSH-XJX45
  • FSH-XJX45
  • FSH-XJX45
  • FSH-XJX45

FSH-XJX45

0 kr.
Magn

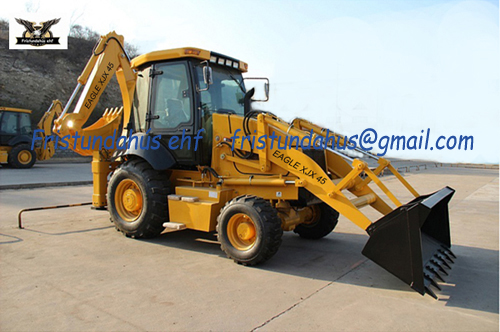

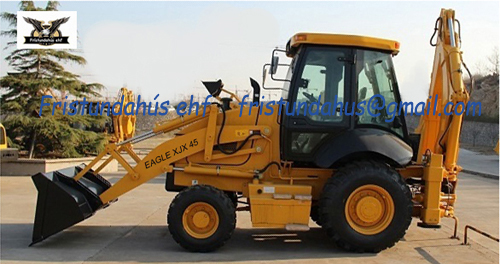

FSH EAGLE XJX45

L*W*H （mm）
5919×2217×3764
Overall Operating Weight
8125KG
Wheel base
2200mm
Min. Ground Clearance
300mm
Bucket Capacity
1.0m3
Breakout Force
38KN
Loading Lifting Capacity
2500KG
Bucket Dumping Height
2742mm
Bucket Dumping Distance
1062mm
Digging Depth
52mm
Backhoe Capacity
0.3 m3
Max. Digging Depth
4082mm
Swing Angle of Excavator Grab
190o
Max. Pulling Force
39KN



Model



CUMMINS 100hp



Type
In Line Direct injection Four-Stroke and Injection Combustion Chamber



Rated Power



74KW/100HP



Rated Speed
2400r/min
Min. Fuel Consumption
≤216g/km.h
Max.Torque
≥261.7N.M/1800r/min
Displacement
4.4L



Model of Steering Device
BZZ5-250
Steering Angle
±36 o
Min. turning radius
6581mm
Pressure of the system
12Mpa
Axle
Manufacture



Final Reducer
Single Stage Final Reducer
Rated Loader of Axle
4/18.5t
Transmission System



Model



Type
Single-stage Three Elements
Max. Efficiency
84.4%
Inlet Pressure
0.4Mpa—0.55 Mpa
Outlet Pressure
1.2Mpa—1.5 Mpa
Cooling Method
Oil-cooling Pressure Circulation



Type
Fixed Shaft Power Transmission
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Gears
Two Gears Ahead, Two Gears Astern



Tyre Model
14-17.5/19.5L-24
Pressure of Front wheel
0.22 Mpa
Pressure of Back Wheel
0.22 Mpa



Service Brake
Air Over Oil Caliper Brake
External Type
Self-regulation
Self-balance
Emergency Brake
Operation Power Implementing brake
Manual Operation Power Terminating Brake



Digging Power of Excavator Grab
46.5KN
Digging Power of Dipper
31KN
Bucket Lifting Time
5.4S
Bucket Lowering Time
3.1S
Bucket Discharge Time
2.0S
